Product Details:
|
| Product Name: | Marine Airbag,Ship Launching Marine Air Bag,Ship Launching Airbag,Inflatable Marine Rubber Airbag For Ship Launching Made In China,Marine Rubber Airbags For Launching And Docking Ships | Usage: | Ship Launching,ship Rubber Marine Salvage Lift Bags,marine Rubber Airbag,lifting Airbags |
|---|---|---|---|
| Warranty: | 2 Years | Layer: | 5/ 6/ 7 / 8 / 9 / 10 Layers |
| Packing: | Folded Into Tray | Long: | 8--24M |
| High Light: | 24m Heavy Duty Marine Air Bags,8m Heavy Duty Marine Air Bags,24m high pressure air bags |
||

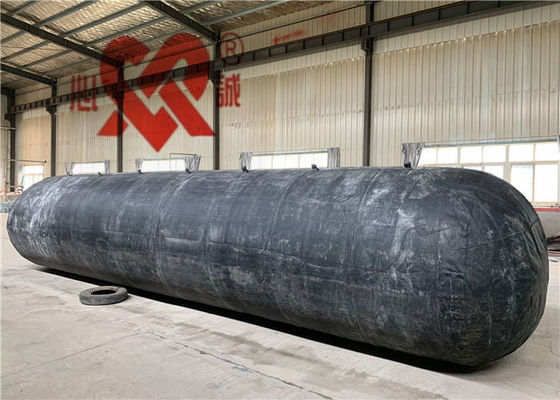

Ship Heavy Duty Air Bags , Marine Air Bags With High Pressure
Marine Ship airbags are also known as air balloon, inflatable bags, roller bags, air lifting bags, salvage bags. Standard air bag size range is 0.8m to 2.0m diameter, with lengths up to 18.0m 'effective length' and even more.
usuage:
1. Shipwreck salvage
2. Floating bridge and dock construction
3. Rescue and remove of wrecked ship
4. Can be used as pontoons for supporting docks and other floating structure.
Performances:
1. We adopt the most advanced winding process to increase the bearing capacity and moment resistant capacity of airbags.
2. Compared with traditional launching track, the advantages of airbags is more flexibility. They are characterized by high resistance, high gas tightness, ageing resistance, and corrosion resistance.
3. Easy to install and dismantle on the wharf and anchor mast.
4. Long service lifespan.
SPECIFICATION OF MARINE AIRBAG
| Some normal sizes of our marine airbags, other sizes are also available | |||
| Diameter(m) | Effective Length(m) | Layer | Pressure(MPa) |
| 1.0 | 10 | 5~6 | 0.07~0.10 |
| 1.0 | 12 | 5~6 | 0.07~0.10 |
| 1.0 | 15 | 5~6 | 0.07~0.10 |
| 1.2 | 10 | 5~6 | 0.08~0.12 |
| 1.2 | 12 | 5~6 | 0.08~0.12 |
| 1.2 | 15 | 5~6 | 0.08~0.12 |
| 1.5 | 12 | 5~8 | 0.08~0.16 |
| 1.5 | 15 | 5~8 | 0.08~0.16 |
| 1.5 | 18 | 5~8 | 0.08~0.16 |
| 1.5 | 20 | 4~8 | 0.08~0.16 |
| 1.5 | 24 | 5~8 | 0.08~0.16 |
| 1.8 | 12 | 5~8 | 0.08~0.15 |
| 1.8 | 15 | 5~8 | 0.08~0.15 |
| 1.8 | 18 | 5~8 | 0.08~0.15 |
| 1.8 | 20 | 5~8 | 0.08~0.15 |
| 1.8 | 24 | 5~8 | 0.08~0.15 |
| 2.0 | 18 | 6~10 | 0.08~0.18 |
| 2.0 | 20 | 6~10 | 0.08~0.18 |
| 2.0 | 24 | 6~10 | 0.08~0.18 |
| 2.5 | 18 | 7~10 | 0.07~0.13 |
| 2.5 | 20 | 7~10 | 0.07~0.13 |
| 2.5 | 24 | 7~10 | 0.07~0.13 |
special attention when use airbags
1) Strictly control the use of pressure
2) Surface contact with the air bag cannot have sharply pointed a blur, prevent prick the airbag
3) Try to avoid air bag length direction of distortion
4) Long time not to use or repaired airbag, pressure test is required before using again; Often use airbags,test once a year.
5) Drag the airbag on the ground balloon is prohibited
