Product Details:
|
Color: | Black,Customers' Requirments,Red,Orange,blue | Type: | Foam,pvc Fender,foam Boat Fenders |
---|---|---|---|
Type: | Floating | Diameter: | 2.0m |
Weight: | Light | Certificates: | BV SGS ABS RS |
High Light: | Closed Cell EVA Foam Filled Fenders,Foam Filled Fenders No Explosion Risk |

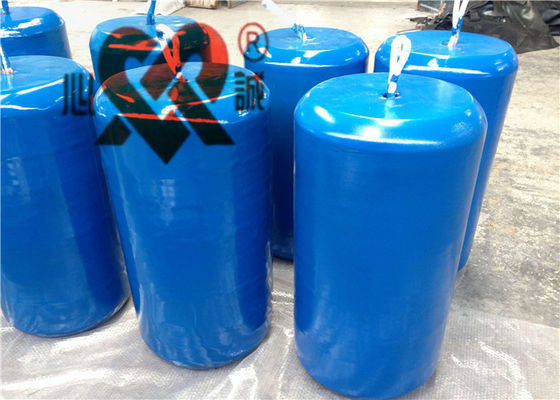

Close Cell Durable EVA Foam Filled Fender With Different Colors
Foam Filled Solid Fender is made of environmental protection material and high elasticity polymeric material. long service life and high economic value of this product is achieved by the high quality material with performance of high strength, high elasticity, high adhesion, anti-leakage,and aging resistance.
polyurethane floating fender is also a kind of compressed fender which builds outer protective layer with polyurethane, materials and adopts polyurethane foaming material or plastic foaming as buffer medium;the destructive effects on docks and ships will be reduced by the compression to absorb the impact energy from ships in the course of using polyurethane floating fender.
Structures
Inner layer: Filled with Closed-cell EVA foam plastics core to absorb elastic energy, which never sink;
Middle layer: Outer rubber and high strength polyamide cord fabric are adopted to better seal the inner EVA foam;
Outer layer: Spraying with adjustable new polyurea elastic maerial, the polyurea coating is permanent and that protect the outer layer of fender from chemical corrosion resistance. It has more durability than rubber because it can reduce the chance of denting and scratches and will not get soften or fragile in hot or cold temperature;
Ends: Equipped with galvanized flange, swivel and can add a protective layer consist of chain and tire net;
marine fender's range of use:
* The marine terminal fender
* Suitable for gravity and London Wharf,especially the large tidal range of the dock
* Particularly applicable to the ship by ship fender, floating fender more adaptability
* As the pier fender, protection of bridge piers,ships from damage;
* Ship-to-ship transfers,Navy berths,Oil and gas tankers,General cargo,Bulk cargo
FAQ
Q: What's the material of your EVA Foam Filled Fender products ?
A: the main raw material is light weight high elasticity foam imported from Korea.
Q: Are you factory or trading company ?
A: We are manufacturing factory, located in Jimo district,Qingdao city, 1 hour drive to Qingdao port and 40 minutes drive to Qingdao airport, which is convenient in transportation logistics.
Q: Is OEM service available ?
A: yes
Q: What's the delivery time and payment terms ?
A: Delivery time is based on product model and order quantity. normally it is around 7-15 working days.
The payment could paid by T/T, L/C, Western Union, Paypal, etc.
规格/Specification | 压缩变形量60% /Compression Deflection at 60% | ||
直径 Diameter/ mm |
长度 Length/mm |
反力 Reaction Force/ KN |
吸收能量 Energy Absorption / KN/M |
300 | 500 | 38 | 1.8 |
400 | 800 | 56 | 2.6 |
500 | 1000 | 72 | 26 |
1000 | 1500 | 205 | 49 |
1000 | 2000 | 274 | 64 |
1200 | 2000 | 337 | 93 |
1500 | 3000 | 624 | 216 |
2000 | 3500 | 990 | 456 |
2500 | 4000 | 1680 | 918 |
3000 | 6000 | 2460 | 1695 |
4500 | 9000 | 19650 | 7860 |
备注: 1. 反力与吸能公差±10% 2.重量公差±10% 3.特殊尺寸可根据要求制造
NOTE: 1. Reaction force and Energy absorption tolerance is ±10%
2. Weight tolerance is ±10%
3. Special size can be produced follow customer’s needs.
