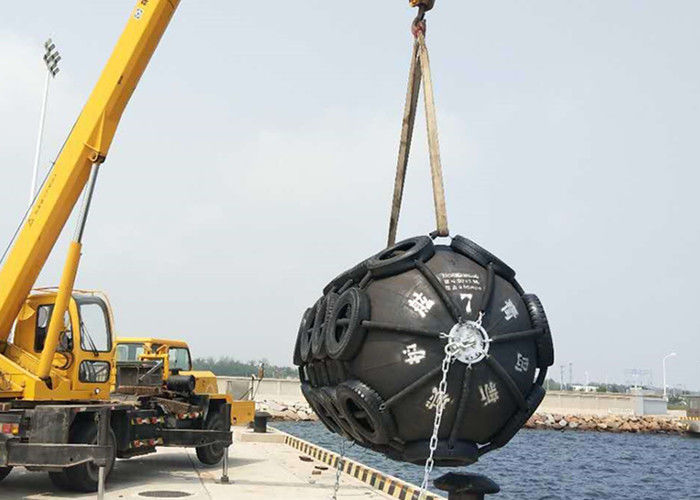

2.5m Diameter Floating Dock Fenders , Rubber Fenders For Boats

Certification
China Qingdao Xincheng Rubber Products Co., Ltd. certification
China Qingdao Xincheng Rubber Products Co., Ltd. certification
I'm Online Chat Now

2.5m Diameter Floating Dock Fenders , Rubber Fenders For Boats

2.5m Diameter Floating Dock Fenders , Rubber Fenders For Boats
2.5m Diameter Floating Dock Fenders , Rubber Fenders For Boats
2.5m Diameter Floating Dock Fenders , Rubber Fenders For Boats 2.5m Diameter Floating Dock Fenders , Rubber Fenders For Boats 2.5m Diameter Floating Dock Fenders , Rubber Fenders For Boats 2.5m Diameter Floating Dock Fenders , Rubber Fenders For Boats 2.5m Diameter Floating Dock Fenders , Rubber Fenders For Boats

Large Image :  2.5m Diameter Floating Dock Fenders , Rubber Fenders For Boats

Product Details:
Place of Origin: Qingdao
Brand Name: XINCHENG
Certification: CCS LR BV SGS RS
Model Number: D2.5m*5.5m L
Payment & Shipping Terms:
Minimum Order Quantity: 1Piece
Price: $200-12000/piece
Packaging Details: Normal packing, deflated packing
Delivery Time: 10-15days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 150piece per month

2.5m Diameter Floating Dock Fenders , Rubber Fenders For Boats

Description
Color: Black Feature: Aging Resistance
Application: STD,STS,Ships And Boats,Ship Fender,Marine/quay/dock/boat Packing: Normal Packing
Length: 0.5m~12.0m,1~9m Warranty Period: 24 Months
Chain: Hot Galvanizing Or Stainless Steel(304 Product Name: Pneumatic Rubber Fender,Marine/Dock Fender
High Light:

2.5m Floating Dock Fenders

,

XINCHENG Rubber Fenders For Boats

,

Rubber Floating Dock Fenders

2.5m Diameter Boat Rubber Fender , Floating Rubber Fender For Ship



Yokohama rubber fender is an ideal protection tool for piers,as well as protection between ships.
floating rubber fender uses compressed air as a buffer medium to absorb the impact energy of the ship. Therefore,
compared with the general compression rubber protective wall, it has large energy absorption,
small reaction force, large contact area with the ship, and small unit surface pressure acting on the ship.
When tilted and compressed, the performance is not reduced, and the advantages of installation and replacement.
It can be adapted to the docking of ships in all directions.



usuages

1. Offshore platform
2. Oil and gas tankers
3. Fast ferries and aluminium vessels
4. In ports with extreme tidal variations
5. Fishing vessel, transport ship and ocean trawler



Feature and Benefit

1.Lower transportation cost,Fender transporte can be folded.Saving 2/3 of transportation cost
2.Easy to maintain
3.Adapt to various harsh environments
4.Natural rubber Used
5.D2/D3 High Strength Tyre Cord Layers
6.Warranty period 24 Months
7.Test Compression over 3000 Times
8.Self-patented safety valve
9.Inflate fast

floating rubber fenders account for 60% of floating fenders in use in the world today and play a major role in offshore cargo transfers between ships. More than 10,000 AirbagTeam Marine's Yokohama fenders have been supplied into ship-to-quay and ship-to-ship applications worldwide. And that faith has been justified by the durability and longevity of the fenders – providing an outstanding return on the investment which their owners have made in them. ISO 17357 is now firmly established within the marine industry as the international standard for the manufacture, testing and performance of pneumatic rubber fenders. We bring the benefit of significant marine and operational expertise to all our fender customers, working with them to ensure that they obtain the best-fit, best value product to suit their fendering needs.



80Kpa type



Nominal size INTERNAL PRESSURE 0.08Mpa
at 60% deflection
Safety-valve pressure setting Testing pressure
Diameter Length Energy absorption Reacion force Hull pressure
mm mm kN·m kN kPa kPa kPa
500 1000 8 85 174 - 250
600 1000 11 98 166 - 250
700 1500 24 180 177 - 250
1000 1500 45 239 160 - 250
1000 2000 63 338 174 - 250
1200 2000 88 390 166 - 250
1350 2500 142 561 170 - 250
1500 3000 214 761 174 - 250
1700 3000 287 840 168 - 250
2000 3500 430 1150 168 - 250
2500 4000 925 1815 180 230 300
2500 5500 1317 2653 195 230 300
3000 6000 1890 2906 196 230 300
3300 4500 1640 2476 171 230 300
3300 6500 2532 3961 191 230 300
3300 10600 4281 6907 208 230 300
4500 9000 6633 7551 192 230 300
4500 12000 9037 10490 202 230 300

50Kpa type

Nominal size INTERNAL PRESSURE 0.05Mpa
at 60% deflection
Safety-valve pressure setting Testing pressure
Diameter Length Energy absorption Reacion force Hull pressure
mm mm kN·m kN kPa kPa kPa
500 1000 6 64 132 - 200
600 1000 8 74 126 - 200
700 1500 17 137 135 - 200
1000 1500 32 182 122 - 200
1000 2000 45 257 132 - 200
1200 2000 63 297 126 - 200
1350 2500 102 427 130 - 200
1500 3000 153 579 132 - 200
1700 3000 191 639 128 - 200
2000 3500 308 875 128 - 200
2500 4000 663 1381 137 175 250
2500 5500 943 2019 148 175 250
3000 6000 1309 2387 148 175 250
3300 4500 1175 1884 130 175 250
3300 6500 1814 3015 146 175 250
3300 10600 3067 5257 158 175 250
4500 9000 4752 5747 146 175 250
4500 12000 6473 7984 154 175 250

Structure

1.Outer Rubber
Cover outside on the ball of rubber layer, which is used to protect skeleton material and inner rubber
ball from damage of external force.

2. Synthetic cord reinforced rubber layer
Reinforced cord rubber layer is composed of winding synthetic cord layer, it is mainly used for maintain
the internal air pressure.

3. Inner Rubber
On the ball inside the rubber layer, which is used to prevent air leakage and control the ball pressure.

4. End Flange
The metal parts at both ends of fender, which can be fitted with charging valve and safetyvalve.
