Product Details:
|
Material: | 75% Natural Rubber | Marine Parts: | Fender Or Bumper |
---|---|---|---|
HS Code: | 4016940000 | Transport Package Deflated Packing: | Deflated Packing |
Part: | Tyre-chain Net,fender,Chain And Tyrers,Marine Rubber Fender | Product Name: | Marine/Dock Fender,Yokohama Rubber Fender With BV Certificate,Pneumatic Rubber Fender,Ship Yokohama Type Pneumatic Marine Rubber Fender |
High Light: | Yokohama Rubber Ship Fender,Pneumatic Rubber Ship Fender,Tyre Net Yokohama Pneumatic Fenders |
Chain And Tyre Net Pneumatic Natural Yokohama Rubber Ship Fender
Yokohama Floating Rubber fender is the advanced anti-collision device for marine application in the world. Pneumatic rubber fender is also known as floating fender or Yokohama type tugboat rubber fender, it is often installed on the terminal or ship, which aims to absorb or reduce the collision energy between ship to ship and ship to dock. This kind of product can protect the ship or dock from the damage of collision. With inner compressed air, it can float on the water and widely used as protecting medium equipment. Size : D0.5 m x L1.0 m ~ D 4.5 x L9.0m. "XINCHENG" yokohama barco defensas are produced in strict accordance with the ISO17357-2002 and GB/T 2002-2002 international quality standard. Nowadays, our products have been exported to all over the world.
Advantages:
1. Large compression deformation, low reaction force, high energy absorption
2. Good floating performance, meet the needs of water level change
3. With compressed air as medium, the collision energy consumption bu compressed air power
4. Easy installation and long service life
1. Net Type Pneumatic Fenders are covered with a chain net, wire net, or fiber net. Each end of longitudinal chains, wires, or fibers is linked together with one or two ring(s), which shall be connected with a guy chain or guy-rope. Usually, these nets have used tires together with rubber sleeves for additional protection to the fender body, except for fiber net which has only rubber sleeves. Chain nets last longer against corrosion, while wire nets are light and more easily repaired.
2.Sling Type Pneumatic Fender is common type of Pneumatic Rubber Fenders. It is designed without chain and tyre net. So its advantage is lower weight than traditional chain and tyre net fenders. Meanwhile, Sling type pneumatic fender commonly used for some small and medium size vessel.
Floating Pneumatic Fenders' diameter is 500 mm to 4,500 mm at maximum. The range of lengths are 1000 mm to 12,000 mm, as well as special sizes. The sling-type or chain & tire net(CTN) are available for both sizes.
Pneumatic fenders Production Standard:
Xincheng Pneumatic fenders have passed ISO9001 Quality management system certificate, each fender is fully comply with ISO17357-2014 and GB/T21482-2008 international Production Standard.
There are two initial pressure rating for our Pneumatic Rubber Fenders.
Pneumatic 50 (P50, Initial internal pressure 50kPa)
Pneumatic 80 (P80, Initial internal pressure 80kPa)
Normal Size | Inner Pressure:50Kpa,60%deflection | Inner Pressure:80Kpa,60%deflection | |||||
(mm) | (mm) | (KN) | (KN.M) | (Kpa) | (KN) | (KN.M) | (Kpa) |
Diameter | Length | Reaction Force | Energy Absorption | Hull Absorption | Reaction Force | Energy Absorption | Hull Absorption |
500 | 1000 | 64 | 6 | 132 | 85 | 8 | 174 |
600 | 1000 | 74 | 8 | 126 | 98 | 11 | 166 |
700 | 1500 | 137 | 17 | 135 | 180 | 24 | 177 |
1000 | 1500 | 182 | 32 | 122 | 239 | 45 | 160 |
1000 | 2000 | 257 | 45 | 132 | 338 | 63 | 174 |
1200 | 2000 | 297 | 63 | 126 | 390 | 88 | 166 |
1350 | 2500 | 427 | 102 | 130 | 561 | 142 | 170 |
1500 | 3000 | 579 | 152 | 132 | 731 | 214 | 174 |
1700 | 3000 | 639 | 191 | 128 | 840 | 267 | 168 |
2000 | 3500 | 875 | 308 | 128 | 1150 | 430 | 168 |
2500 | 4000 | 1381 | 663 | 137 | 1815 | 925 | 180 |
2500 | 5500 | 2019 | 943 | 148 | 2653 | 1317 | 195 |
3300 | 4500 | 1884 | 1175 | 130 | 2476 | 1640 | 171 |
3300 | 6500 | 3015 | 1814 | 146 | 3961 | 2532 | 191 |
3300 | 10600 | 5121 | 3090 | 171 | 6612 | 4294 | 220 |
4500 | 7000 | 4660 | 3816 | 186 | 5866 | 4945 | 233 |
4500 | 9000 | 5747 | 4752 | 146 | 7551 | 6633 | 192 |
4500 | 12000 | 7984 | 6473 | 154 | 10490 | 9037 | 202 |

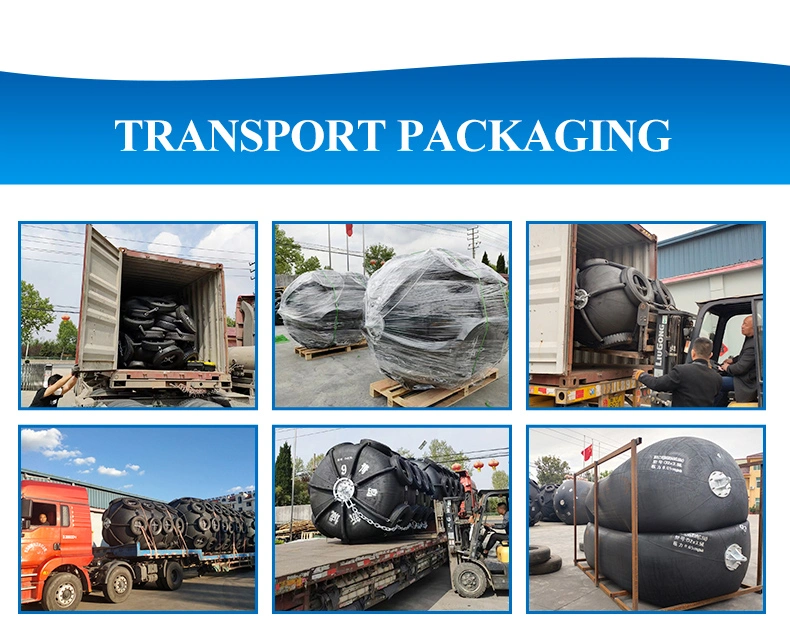

Pneumatic Fender Packing and shipping:
Xincheng Pneumatic Fender have many ways for our clients to choose, such as infate packing (with air) and deflated packing(without air),. For bigger size fenders, it had better to ship without air, aim to help you to save much transportation cost.
Qingdao Xincheng Rubber Products Co.,ltd was founded in 1986, mainly produces pneumatic rubber fenders, marine rubber airbags, ship launching with airbags applications, foam filled fenders and other rubber fenders, which as the leading enterprise has passed CCS , ISO9001:2008, SGS, BV certificates. We have established long time cooperation with many clients, from Southeast Asia, Middle East, South America and EU countries and many other countries throughout the world.
The Yokohama pneumatic floating fender is fully compliant with ISO 17357 and GB/T21482-2008 international production standards. Each Yokohama fender is clearly marked with all relevant identification and fitted with a set of accessories free of charge. Available in a whole variety of different sizes, each fender comes with up-to-date certifications.
All Yokohama pneumatic floating fenders are constructed with an inner rubber layer, this is reinforcing the cord layers and the outer rubber layer. They then have a thick outer skin which supersedes that of a normal surface fender. All fenders with a diameter of 2.5m and above are also fitted with a safety valve.
Yokohama fenders are suitable for a whole host of applications, you can use them for various ship-to-quay and Ship-to-Ship applications with different a whole host of different sizes available. They are easy and inexpensive to install with only a guy rope of a chain required. They can also easily be transferred to alternative mooring points.
Yes, all Yokohama fenders are fully compaitble with Marine's chain and tyre fender nets.
