ISO9001 Black Marine Rubber Airbags Ship Launching Balloon For Heavy Duty

Ship Launching Marine Inflatable Rubber Airbags , Air Lifting Bags


​

2. AIRBAG STRUCTURE & MATERIAL REQUIREMENTS
2.1 Airbag Structure

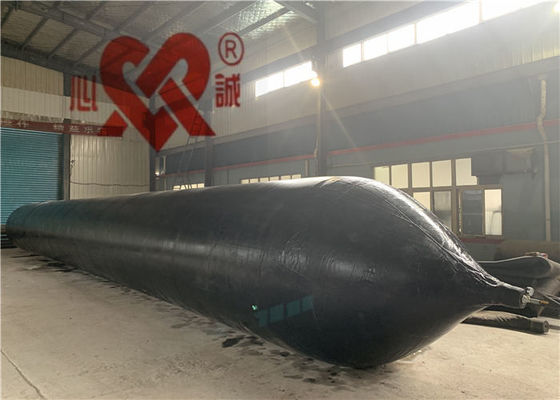

"XINCHENG" Marine Rubber Airbags' structure is consists of the outer rubber layer synthetic cord reinforced rubber layers and inner rubber layer.
Its shape characteristics: central body cylindrical + tapered on both ends.
Cord layers: 4,5,6,7,8,9,10, layers
Accessories: Pressure gage, Inlet valve, Pipe fitting and seal end ring.

Features of Marine Rubber Airbag

1. Long lifespan

2. Movable and reusable

3. Saving investment costs

4. Saving labor and time

​
2.2 Material

1. Choose the best quality of imported natural rubber, such as smoked sheet rubber and 3L natural rubber from Thailand and Malaysia, which has good elasticity, ageing resistance, and will not take off layer. Meanwhile, During the process of produce rubber, we using efficient stabilizer to make rubber more environmentally friendly and no cracks.

   No	Test item		Required value	Test method
   1	Tensile strength,MPa		≥18	ISO 37
   2	Elongation at break, %		≥400	ISO 37
   3	Hardness, °(Shore A)		60±10	ISO 7619-1
   4	Tear Strength, N/cm		≥400	ISO 34-1
   5	Compression set, %(70ºC±1ºC, 22h)		≤30	ISO 815-1
   6	After thermal ageing at 70ºC±1ºC, 96h	Holding of pull lengthening, %	≥80	ISO 188
   7		Holding of elongation at break, %	≥80	ISO 188
   8		Change of hardness,°(Shore A)	≤8	ISO 7619-1
   9	Static ozone aging test at 40ºCx96h [ozone concentration(50±5)x10-8],extension 20%		No crack	ISO 1431-1

   2) Our marine rubber airbags' material using three strands synthetic-tyre-cords whose tensile strength can be 31 KG, which make our airbags more higher bearing capacity and safety.

   ​

Figure 2. Synthetic-tyre-cord

1. Wrap threads that run vertically through the synthetic tyre-cord pattern.
2. Weft threads that run perpendicular to the warp threads.

3. usually produce and supply airbags in size of following as per customer’s launching requirement:

Diameter: 0.8m, 1.0m, 1.2m, 1.5m, 1.8m, 2.0m, 2.5m

Effective length: 5m-24m

Layer: 4-10 layers

​

Why choose our marine airbags?

1. More than 20 years of production experience

2. Credible company to make airbags with optimzied rubber material and enough layers

3. Airbags have been inspected by Third-Party like BV, SGS, V-Trust etc

FAQ

."Can I use marine rubber airbags for both ship launching and docking ?"
Answer: Yes, our rubber airbags are widely used for ship launching/ docking/ lifting/ moving and salvage etc.now.

2. "What's the advantage of your marine rubber airbags compared to slipway ?"
Answer:

1) our marine rubber airbags are much cheaper than slipway,but also reusable, it can save money and labor
2) our marine rubber airbags are moveable , it can save time and more flexible
3) our rubber airbags are much soft than slipway,there's no harm to the bottom of the ship.

3. "I have ships but don't know how to choose rubber airbags size ,can you help me?"
Answer: Don't worry .We have more than 20 years' experience. Pls tell me information of your ship, we can suggest suitable size for you.
