Rubber Cord Marine Dock Fender Pneumatic Type For Vessel Docking

Certification
China Qingdao Xincheng Rubber Products Co., Ltd. certification
China Qingdao Xincheng Rubber Products Co., Ltd. certification
I'm Online Chat Now

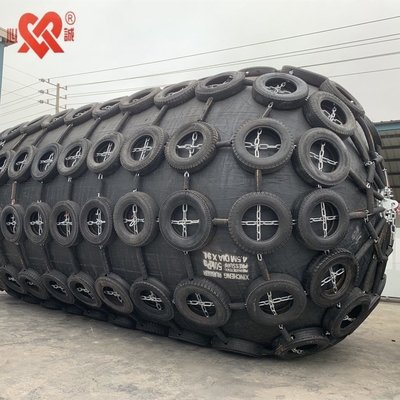

Rubber Cord Marine Dock Fender Pneumatic Type For Vessel Docking

Rubber Cord Marine Dock Fender Pneumatic Type For Vessel Docking
Rubber Cord Marine Dock Fender Pneumatic Type For Vessel Docking
Rubber Cord Marine Dock Fender Pneumatic Type For Vessel Docking Rubber Cord Marine Dock Fender Pneumatic Type For Vessel Docking Rubber Cord Marine Dock Fender Pneumatic Type For Vessel Docking Rubber Cord Marine Dock Fender Pneumatic Type For Vessel Docking Rubber Cord Marine Dock Fender Pneumatic Type For Vessel Docking

Large Image :  Rubber Cord Marine Dock Fender Pneumatic Type For Vessel Docking

Product Details:
Place of Origin: Qingdao
Brand Name: XINCHENG
Certification: CCS LR BV SGS RS
Model Number: D 3.3m*L 6.5m
Payment & Shipping Terms:
Minimum Order Quantity: 1Piece
Price: $200-12000/piece
Packaging Details: Normal packing, deflated packing
Delivery Time: 10-15days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 150piece per month

Rubber Cord Marine Dock Fender Pneumatic Type For Vessel Docking

Description
Certification: CCS BV Certification ISO17357 ISO9001,ABS,DNV,LR,CCS Design Using Life: 10 Years
Packing: Normal Packing Feature: Aging Resistance
Color: Black Material: Natural Rubber
Size: Customized,D3.3*L6.5m Pneumatic Rubber Fender,2*3.5m,3.3x6.5m
High Light:

CCS Rubber Cord Marine Dock Fender

,

Marine Dock Fender Pneumatic Type

,

Vessel Docking Rubber Cord Marine Dock Fender

Rubber Cord Marine Dock Fender With Pneumatic Type For Vessel Docking



The Advantages of Pneumatic rubber fenders:



1 Safe for excess load.



The reaction force of floating fenders does not increase sharply even under excess load. Therefore, these fenders perform extremely well under such conditions and, as a result, protect ships and mooring facilities.



2 No deterioration or Variation in performance



Because pneumatic fenders use the compressive elasticity of air, there is no performance deterioration due to fatigue. The performance of these fenders remains unchanged at extremely low temperatures, even below -50℃.



3 Safety and reliability



Pneumatic rubber fenders are constructed using several layers of strong type cord and are therefore extremely resistant to pressure and cutting. The larger sizes (2.5m dia upward) are fitted with a safety valve to prevent accidents in event of over compression.



4 Simply and low cost installation



The weight of the fender is supported by the water on which it floats. Fenders can, therefore, be moored simply by means of a guy rope or chain at minimal cost. They can be removed easily to another position when not in use and transferred to alternative mooring points as required.

Rubber Cord Marine Dock Fender Pneumatic Type For Vessel Docking 0

The structure of Rubber Pneumatic Fenders:

The outer rubber layer protects the cord layer and inner layer from abrasion and other external forces. This compound has sufficient tensile and tear strength to withstand any weather condition and hard usage



The cord layers are arranged at ideal angles to hold the internal pressure and to distribute the stress evenly. The fenders cord layer is constructed by means of integrative twine technology and consists of polyamide fiber with high tensile stress, so that the fenders have unique strength and uniformity in different directions.



The inner rubber layer seals the air inside, utilizing a compound with airtight quality.Pneumatic Rubber fender description Yokohama rubber fender is intended to be used for the berthing and mooring of a ship to another ship or berthing structure. It also specifies the test and inspection procedures for high-pressure floating Pneumatic Rubber Fender.

Flange opening:The metal parts at both ends of fender,to which an air valve or safety valve can be adapted.



Rubber Cord Marine Dock Fender Pneumatic Type For Vessel Docking 1

How to choose the right size fender



A船舶(DWT)

A vessel(DWT)

B船舶(DWT)

B vessel(DWT)

假定接舷速度(m/s)

ASSumed speed

Access side(m/s)

有效运动能量(kJ)

Effectirve kinetic

energy



护舷尺寸(D*L)

Fender Dimension

(D*L)

300,000 200,000 0.15 1230 3.3*6.5
150,000 0.15 1030 3.3*6.5
100,000 0.15 781 3.3*6.5
200,000 150,000 0.15 882 3.3*6.5
100,000 0.15 693 3.3*6.0
85,000 0.15 618 3.0*5.0
100,000 85,000 0.17 617 3.0*5.0
50,000 0.18 511 3.0*5.0
40,000 0.20 544 3.0*5.0
50,000 40,000 0.20 425 2.5*5.5
30,000 0.22 437 2.5*5.5
20,000 0.25 443 2.5*5.5
20,000 15,000 0.27 318 2.5*4.0
10,000 0.30 309 2.2*3.5
5,000 0.35 253 2.0*3.5
10,000 5,000 0.35 212 2.0*3.5
3,000 0.40 196 2.0*3.5
1,000 0.50 137 2.0*3.0



Rubber Cord Marine Dock Fender Pneumatic Type For Vessel Docking 2

Rubber Cord Marine Dock Fender Pneumatic Type For Vessel Docking 3

Rubber Cord Marine Dock Fender Pneumatic Type For Vessel Docking 4
