Product Details:
|
| Certification: | CCS BV Certification ISO17357 ISO9001,ABS,DNV,LR,CCS | Part: | Marine Equipments,Flange,Pneumatic Boat Fender,pneumatic Rubber Fender |
|---|---|---|---|
| Material: | Natural Rubber | Application: | STD,STS,Ships And Boats,Ship Fender,Marine/quay/dock/boat |
| Warranty Period: | 24 Months | Type: | 50Kpa |
| Design Using Life: | 10 Years | Packing: | Normal Packing |
| High Light: | Ship Protection Pneumatic Marine Fenders,XINCHENG Pneumatic Marine Fenders,50Kpa pneumatic floating fender Corrosion Resistant |
||

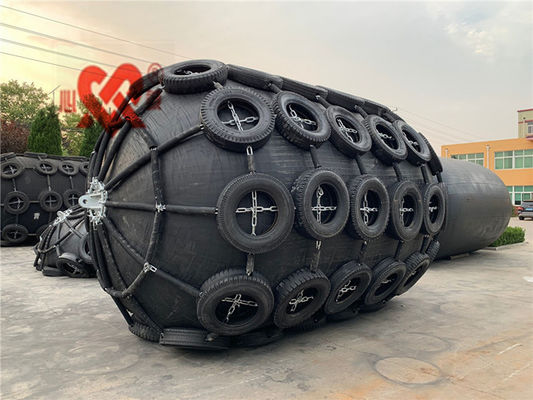

Ship Protection 50 Type floating Pneumatic Fender rubber bumper for vessle
Pneumatic Rubber Fender also known as Pneumatic Marine rubber fender or Yokohama rubber fender, it is often installed on the terminal or ship, which aims to absorb or reduce the collision energy between ship and ship or ship and dock. This kind of product can protect the ship or dock from the damage of collision.
Pneumatic rubber fender is the advanced anti-collision device for marine application in the world. It is made of synthetic nylon lines and compressed rubber sheet. With inner compressed air, it can float on the water and widely used as protecting medium. Pneumatic rubber fender can absorb large energy to lower the unit pressure which effect on the surface of the ship. It is usually used as an important protecting medium to prevent a collision in craft works and mooring works.
The structure of Rubber Pneumatic Fenders:
The outer rubber layer protects the cord layer and inner layer from abrasion and other external forces. This compound has sufficient tensile and tear strength to withstand any weather condition and hard usage
The cord layers are arranged at ideal angles to hold the internal pressure and to distribute the stress evenly. The fenders cord layer is constructed by means of integrative twine technology and consists of polyamide fiber with high tensile stress, so that the fenders have unique strength and uniformity in different directions.
The inner rubber layer seals the air inside, utilizing a compound with airtight quality.Pneumatic Rubber fender description Yokohama rubber fender is intended to be used for the berthing and mooring of a ship to another ship or berthing structure. It also specifies the test and inspection procedures for high-pressure floating Pneumatic Rubber Fender.
Flange opening:The metal parts at both ends of fender,to which an air valve or safety valve can be adapted.
Pneumatic 50 fender size and performance requirements
|
Normal Size (Diameter × Length) |
Initial Internal Pressure |
Guaranteed Energy Absorption (GEA) |
Reaction Force At GEA (RF) |
Hull Pressure At GEA (PR) |
| (mm) | (KPa) | (KN/M) | (KN) | (KPa) |
| 500×1000 | 50 | 6 | 64 | 132 |
| 600×1000 | 50 | 8 | 74 | 126 |
| 700×1500 | 50 | 17 | 137 | 135 |
| 1000×1500 | 50 | 32 | 182 | 122 |
| 1000×2000 | 50 | 45 | 257 | 132 |
| 1200×2000 | 50 | 63 | 297 | 126 |
| 1350×2500 | 50 | 102 | 427 | 130 |
| 1500×3000 | 50 | 153 | 579 | 132 |
| 1500×4000 | 50 | 230 | 815 | 130 |
| 1700×3000 | 50 | 191 | 639 | 128 |
| 2000×3500 | 50 | 308 | 875 | 128 |
| 2500x3000 | 50 | 497 | 1036 | 128 |
| 2500×4000 | 50 | 663 | 1381 | 137 |
| 2500×5500 | 50 | 943 | 2019 | 148 |
| 3000x5000 | 50 | 965 | 1815 | 148 |
| 3000x6000 | 50 | 1184 | 2243 | 152 |
| 3300×4500 | 50 | 1175 | 1884 | 130 |
| 3300×6500 | 50 | 1814 | 3015 | 146 |
