Product Details:
|
| Size: | Customized,D3.3*L6.5m Pneumatic Rubber Fender,2*3.5m,3.3x6.5m | Warranty Period: | 24 Months |
|---|---|---|---|
| Length: | 1~9m | Product Name: | Pneumatic Rubber Fender,Marine/Dock Fender |
| Warranty: | 24 Months | Chain: | Hot Galvanizing Or Stainless Steel(304,316) |
| Design Using Life: | 10 Years | ||
| High Light: | 3.3m Marine Dock Bumpers Fenders,BV Cylindrical Rubber Fenders,Marine Dock Bumpers Fenders Cylindrical |
||

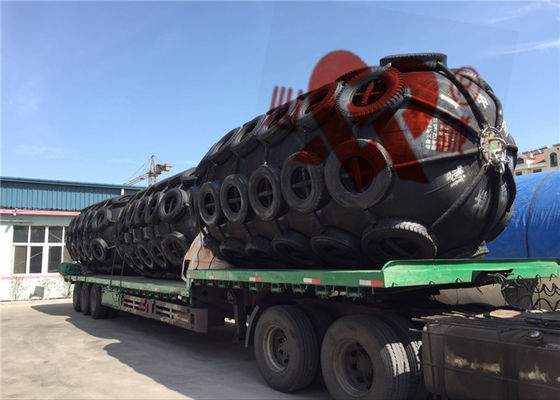

3.3m diameter dock bumper fender cylindrical floating fender for ship
Pneumatic rubber fenders have a long and successful history of protecting vessels in mooring operations. They are ideal for permanent and semi-permanent port applications and for offshore ship-to-ship transfers. Tough and resilient, Xincheng Marine System’s fenders are fast and easy to deploy, maintaining large clearances between the hull and the jetty or other vessel. This serves to minimise damage potential during mooring.
The structure of Rubber Pneumatic Fenders:
The outer rubber layer protects the cord layer and inner layer from abrasion and other external forces. This compound has sufficient tensile and tear strength to withstand any weather condition and hard usage
The cord layers are arranged at ideal angles to hold the internal pressure and to distribute the stress evenly. The fenders cord layer is constructed by means of integrative twine technology and consists of polyamide fiber with high tensile stress, so that the fenders have unique strength and uniformity in different directions.
The inner rubber layer seals the air inside, utilizing a compound with airtight quality.Pneumatic Rubber fender description Yokohama rubber fender is intended to be used for the berthing and mooring of a ship to another ship or berthing structure. It also specifies the test and inspection procedures for high-pressure floating Pneumatic Rubber Fender.
Flange opening:The metal parts at both ends of fender,to which an air valve or safety valve can be adapted.
1."I have ships but don't know how to choose the size of dock bumpers ,can you help me?"
Answer: Don't worry .We have more than 20 years' experience. Pls tell me information of your ship, we can suggest suitable pneumatic fender size and quantity for you.
2."I want to try your pneumatic fender, but I never use it and don't know how to use ,can you help me?"
Answer: Don't worry. We will send instruction book together with dock bumpers.
3."What's the MOQ of your dock bumpers?"
Answer: The MOQ of our dock bumpers is 1PC.
4."What's the lifespan of your dock bumpers?"
Answer: Designed lifespan of our dock bumpers is 6 to 10 years
5."What's the warranty period of your dock bumpers?"
Answer: The warranty period of our dock bumpers is 2 years. we will responsible for the repairment or replace the new dock bumpers for you if it proved to be our quality problem.
6."What kind of certificate can you provide for dock bumpers?"
Answer: CCS, SGS BV LR RS etc. certificate is available for our dock bumpers
How to choose the right size fender
|
A船舶(DWT) A vessel(DWT) |
B船舶(DWT) B vessel(DWT) |
假定接舷速度(m/s) ASSumed speed Access side(m/s) |
有效运动能量(kJ) Effectirve kinetic energy
|
护舷尺寸(D*L) Fender Dimension (D*L) |
| 300,000 | 200,000 | 0.15 | 1230 | 3.3*6.5 |
| 150,000 | 0.15 | 1030 | 3.3*6.5 | |
| 100,000 | 0.15 | 781 | 3.3*6.5 | |
| 200,000 | 150,000 | 0.15 | 882 | 3.3*6.5 |
| 100,000 | 0.15 | 693 | 3.3*6.0 | |
| 85,000 | 0.15 | 618 | 3.0*5.0 | |
| 100,000 | 85,000 | 0.17 | 617 | 3.0*5.0 |
| 50,000 | 0.18 | 511 | 3.0*5.0 | |
| 40,000 | 0.20 | 544 | 3.0*5.0 | |
| 50,000 | 40,000 | 0.20 | 425 | 2.5*5.5 |
| 30,000 | 0.22 | 437 | 2.5*5.5 | |
| 20,000 | 0.25 | 443 | 2.5*5.5 | |
| 20,000 | 15,000 | 0.27 | 318 | 2.5*4.0 |
| 10,000 | 0.30 | 309 | 2.2*3.5 | |
| 5,000 | 0.35 | 253 | 2.0*3.5 | |
| 10,000 | 5,000 | 0.35 | 212 | 2.0*3.5 |
| 3,000 | 0.40 | 196 | 2.0*3.5 | |
| 1,000 | 0.50 | 137 | 2.0*3.0 |
Pneumatic Marine Fenders Questions
What is a pneumatic fender?
What is a Yokohama fender?
How much does a Yokohama fender weight?
What are marine fenders?
Why is it called Yokohama fender?
What are ship fenders?
