Product Details:
|
| Certification: | CCS,LR,BV | Warranty Period: | 24 Months |
|---|---|---|---|
| Working Pressure: | 0.05MPa To 0.15Pa | Application: | Salvage,heavy Lifting,Ship Launching,Ship Launching/landing/lifting |
| Diameter: | 0.8--2.5M | Color: | Black |
| Standard: | CB/T-3837,ISO 14409 | ||
| High Light: | D2.5M Ship Launching Rubber Airbags,Floating Ship Launching Rubber Airbags,Boat Pneumatic Floating Airbags |
||

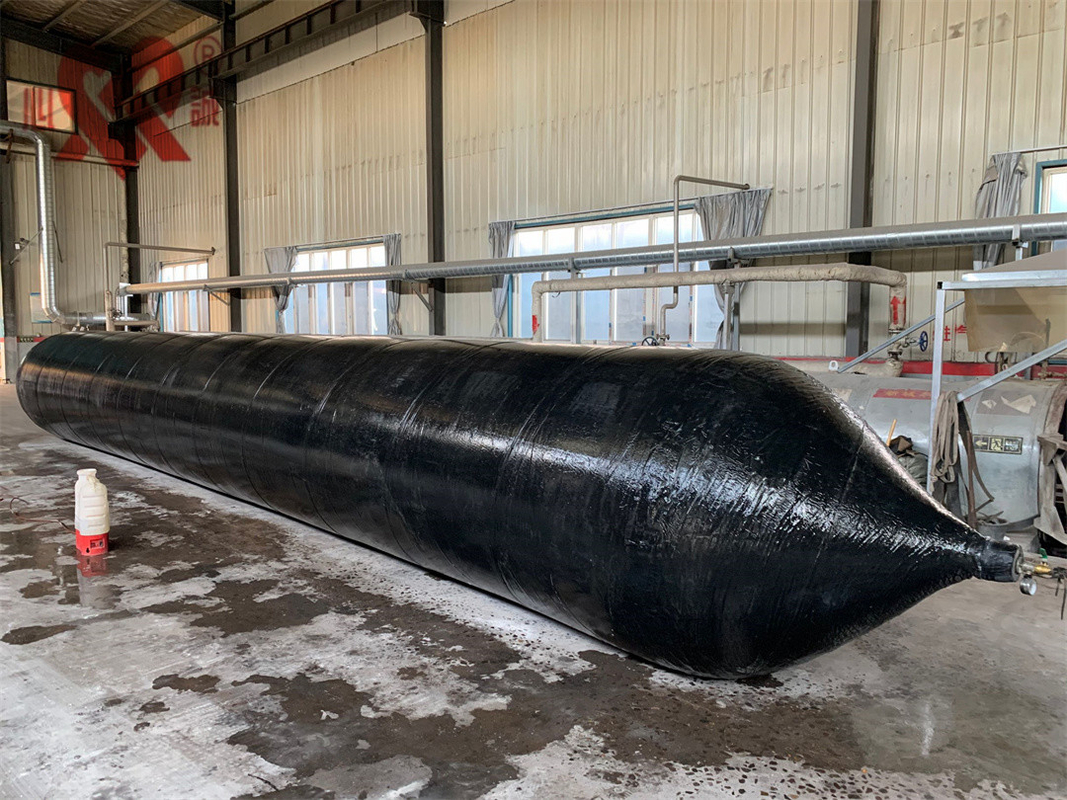

Marine Lifting Air Bag Ship Launching Rubber Airbags Boat Pneumatic Floating Airbags In Sale
1. Introduction
Marine inflatable bags are designed using principle of rolling wood. "XINCHENG" inflatable buoyance bags choose the whole intertwine technology to make rubber airbags on the structure more reasonable, has higher safety coefficient and bearing capacity. Size : D0.5 m x L6.0 m ~ D 2.5 x L25m. "XINCHENG" boat air lifting bags are produced in strict accordance with the ISO17357-2002 and GB/T 2002-2002 international quality standard, our products have exported to all over the world.
2. Marine Air bag Material
Choosing the best quality from imported natural rubber, such as Thailand and Malaysia smoked sheet rubber and 3L natural rubber, which has good elasticity, ageing resistance and not take offer layer. Meanwhile, efficient stabilizer is used to make rubber more environmental friendly and no cracks.
Our marine rubber airbag is using 3 strands synthetic-tyre-cord, which tensile strength can be 31kgs, that make our airbags much higher bearing capacity and safety.
Synthetic-tyre-cord
1. Wrap threads that run vertically through the synthetic tyre-cord pattern.
2. Weft threads that run perpendicular to the warp threads
3. Marine inflatable buoyance bags Structure
4. Advantage
1. Advanced manufacturing technology
2. Best imported natural rubber from Thailand and Malaysia
3. Safety and reliability
4. Good air tightness
5. Saving labor and cost
6. Long using time
5. Application
1. Ship launching and landing
2. Heavy lifting and moving
3. Ship salvage rescue project
6. Standard size of inflatable air lifting bags:
Diameter (D): 0.8m-2.0m
Effective length (EL): 6.0m-18m
Total Length (TL): 7m-20m
Cord layers: 4,5,6,7,8,9,10, layers
| Diameter(m) | 1.0 | 1.2 | 1.5 | 1.8 | 2.0 | |
|
Medium Pressure (4-5) |
Test Pressure | 0.14-0.16 | 0.12-0.14 | 0.10-0.12 | 0.08-0.10 | 0.07-0.09 |
| Working Pressure | 0.12-0.14 | 0.10-0.12 | 0.08-0.10 | 0.07-0.09 | 0.06-0.08 | |
|
High Pressure (6-8) |
Test Pressure | 0.22-0.26 | 0.20-0.24 | 0.15-0.20 | 0.13-0.16 | 0.12-0.15 |
| Working Pressure | 0.20-0.24 | 0.17-0.22 | 0.13-0.18 | 0.11-0.14 | 0.10-0.13 | |
NOTE: Your custom size is accepted.
Our ship launching airbags has a warranty of 2 years after delivery. During warranty period, we are responsible to repair or
replace the airbags that can not be repaired in case the defect is of quality.
After-sale Service: we would like to provide the clients with free repair material: repair rubber, repair machine and heating
plate if they need.
Qingdao Xincheng Rubber Products Co.,ltd was founded in 1986, mainly produces pneumatic rubber fenders, marine rubber
